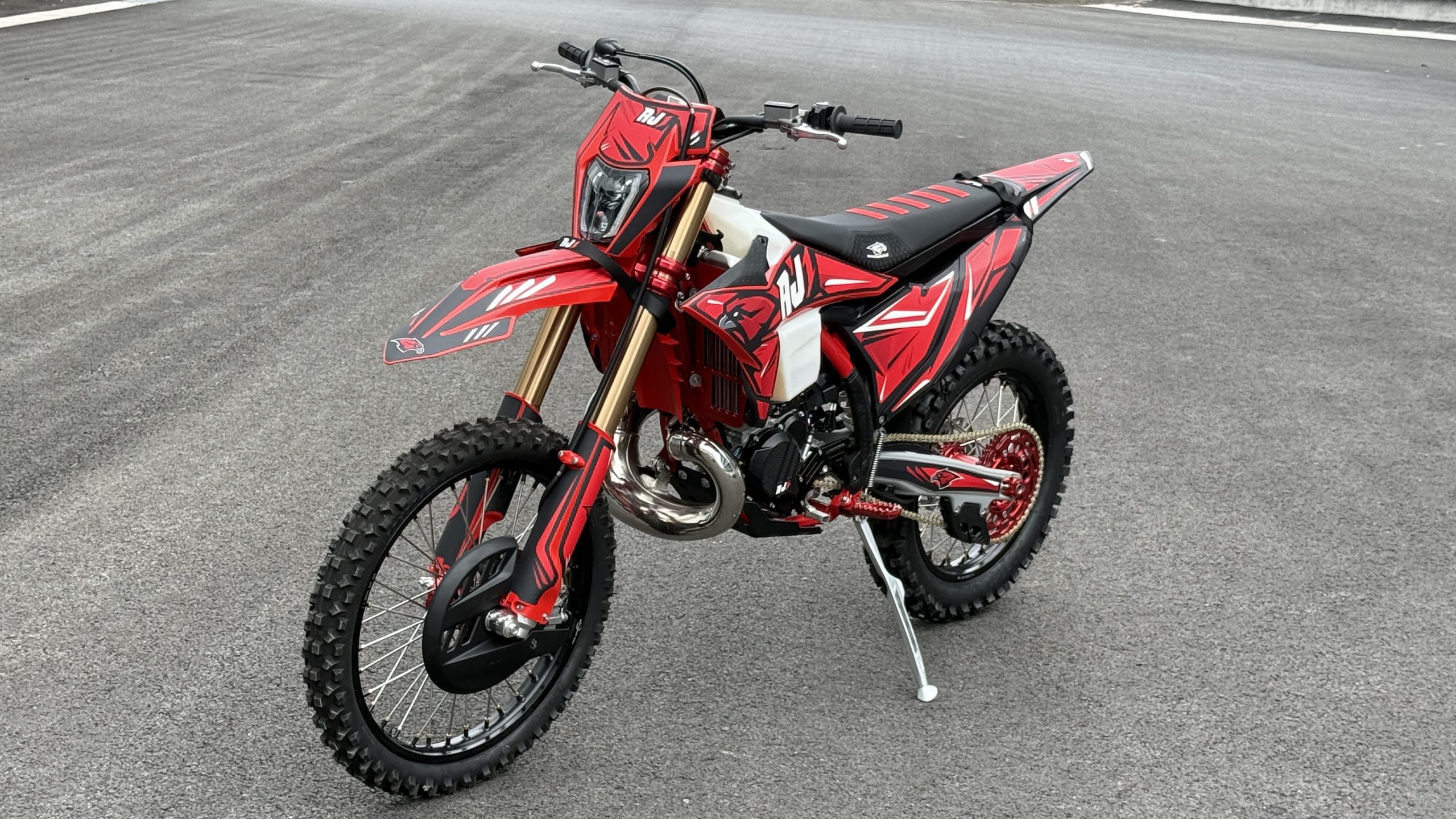

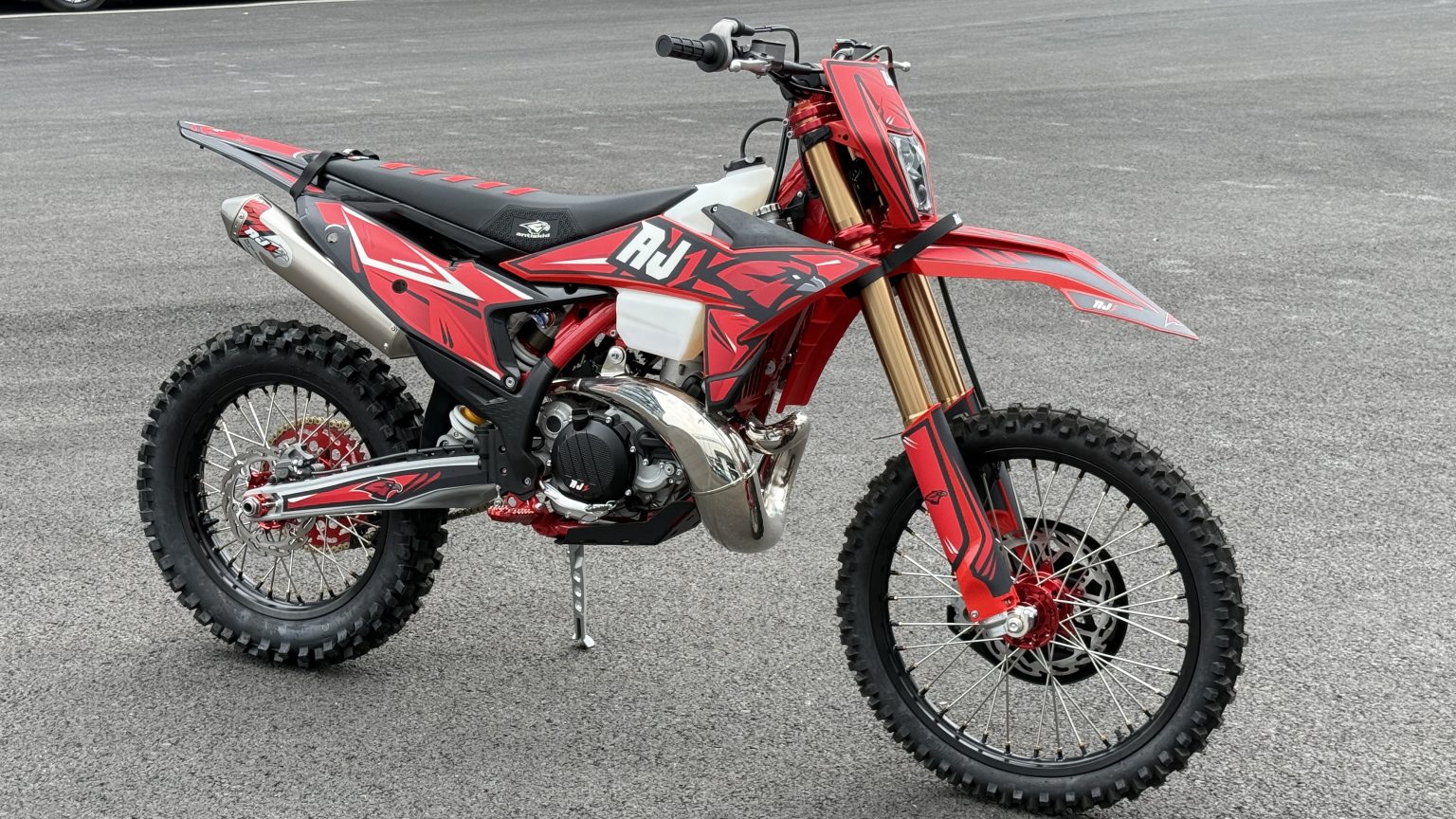

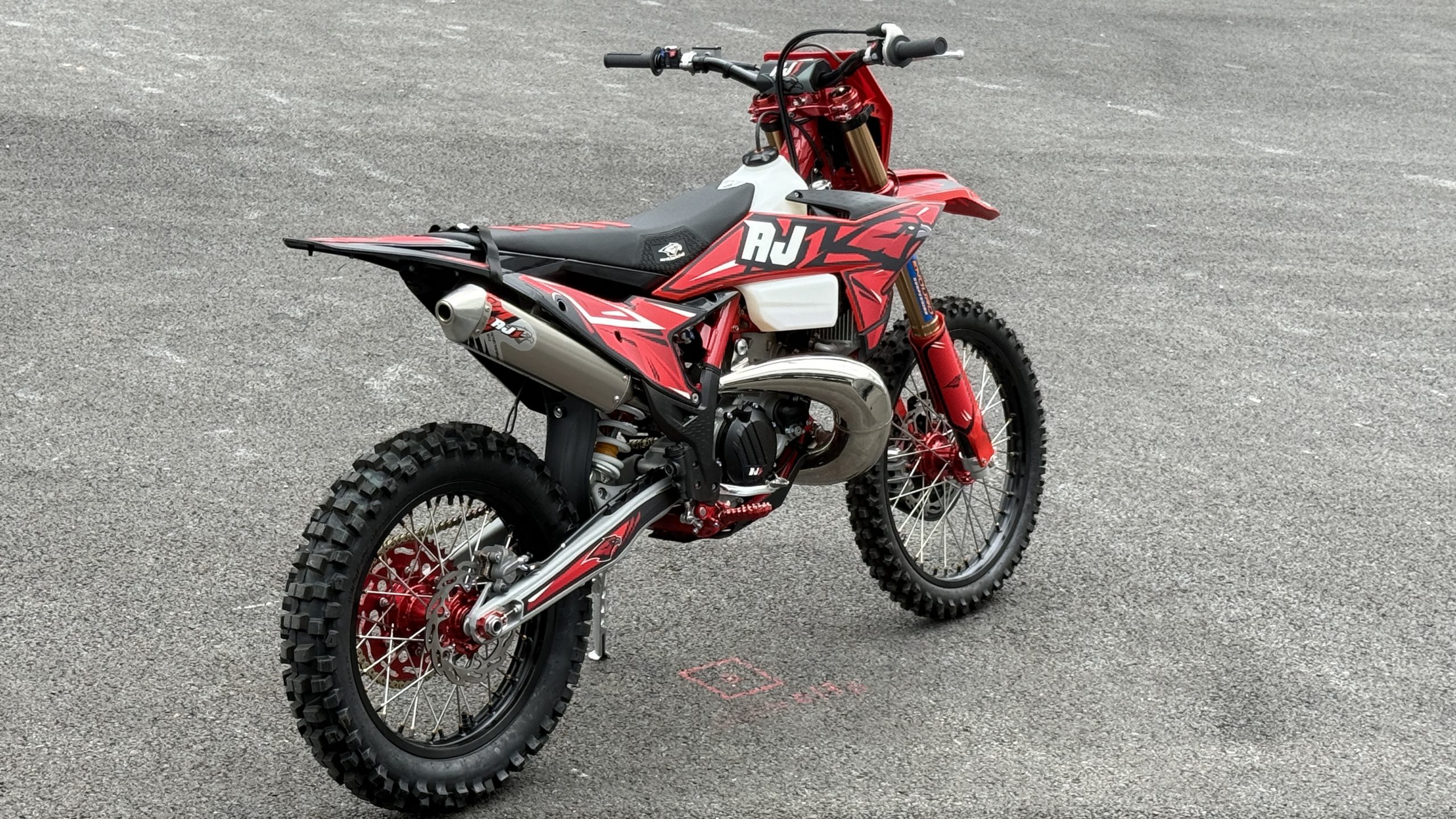

AX300

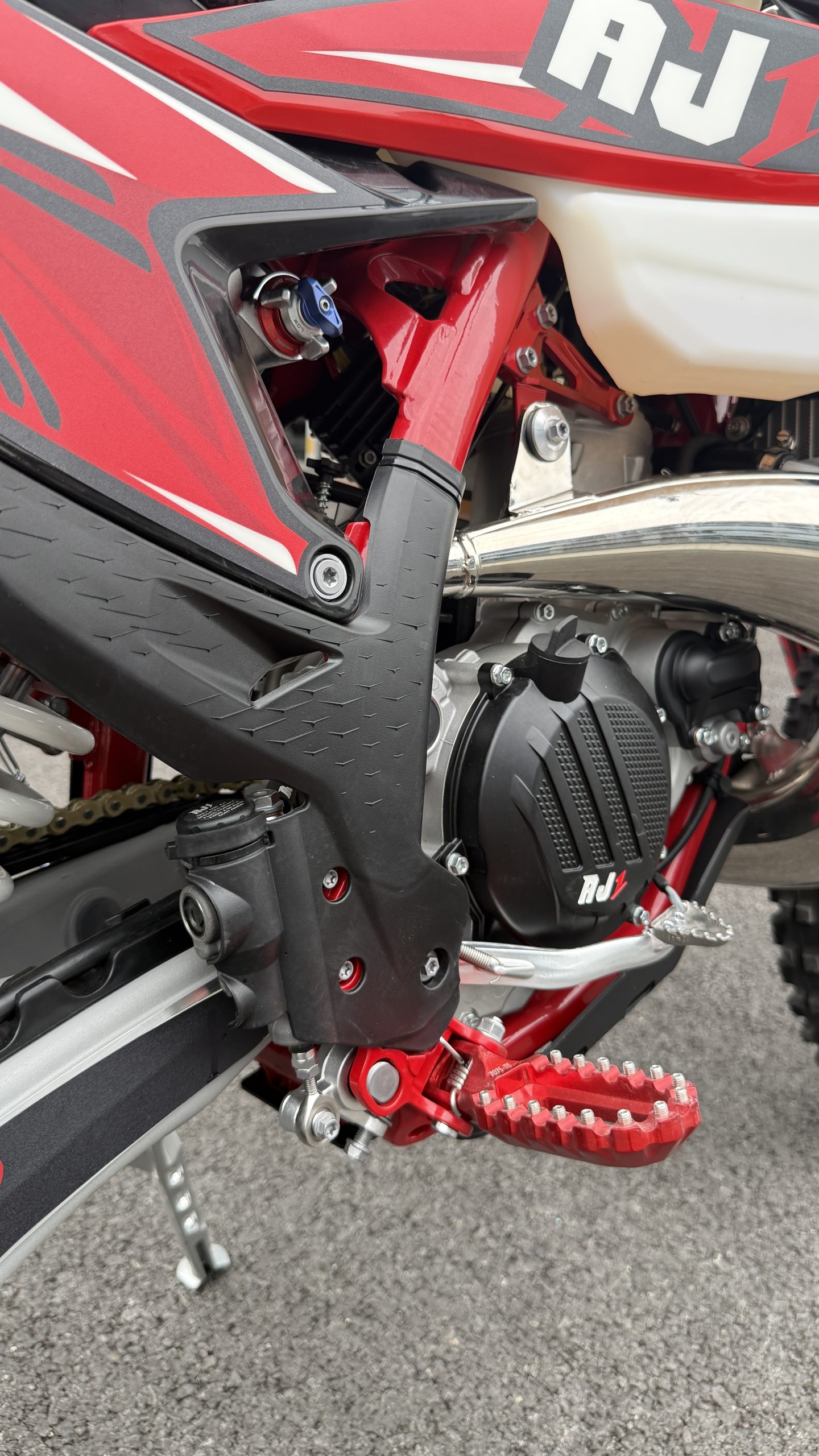

• Frame: central tube, 20CrMo steel
• Sub-frame: aluminum-reinforced plastic
• Dimensions (L x W x H): 2190 x 820 x 1300 mm
• Wheelbase: 1480 mm

• Front: A1J 54×60×940 DC fork (closed cartridge), compression and rebound adjustable; DID bushings (Japan), SKF seals (Italy), 48 mm, DLC-coated lower tube

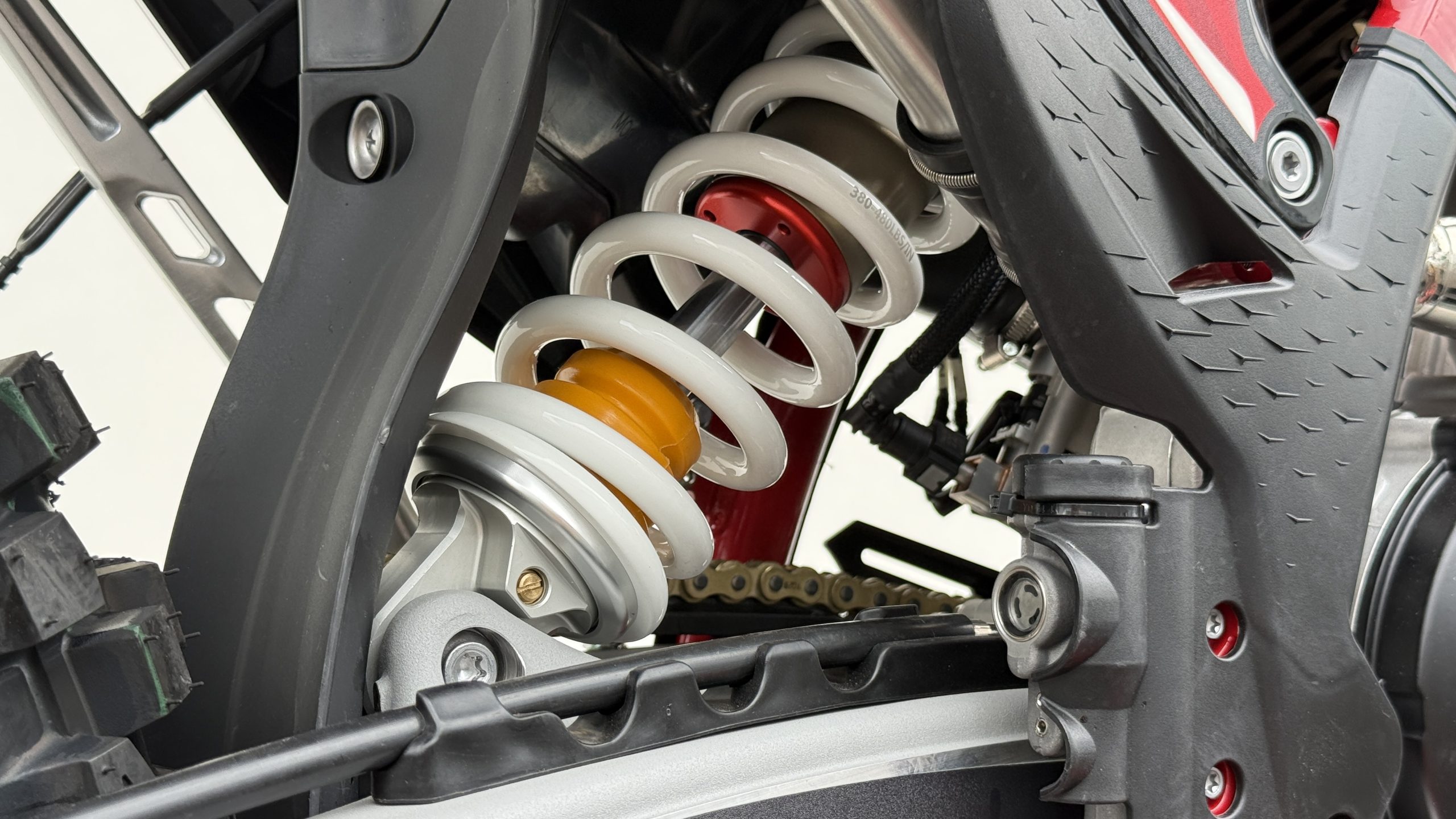

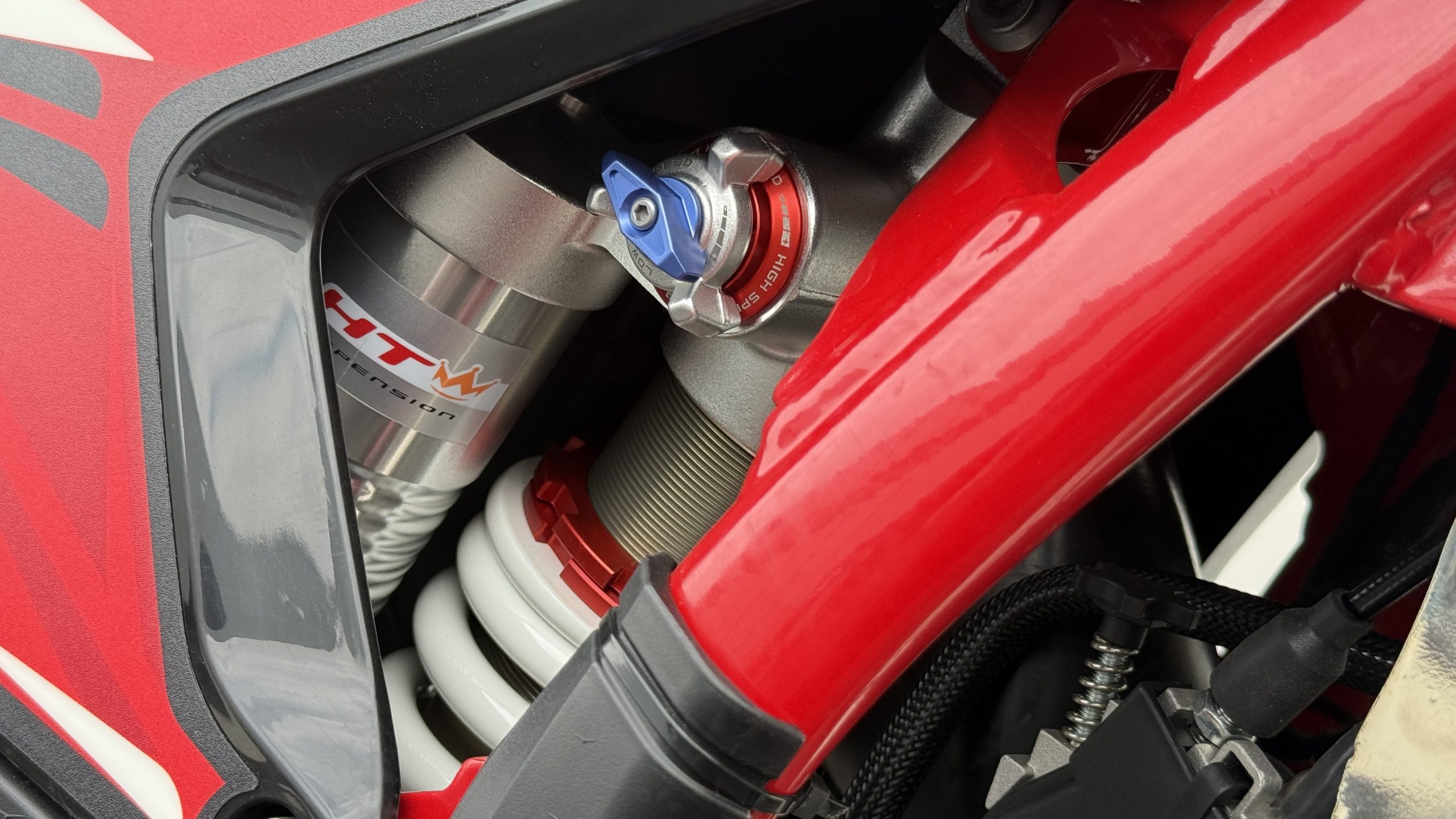

• Rear: PDS 395 mm, high/low-speed compression and rebound adjustable

  With improved damping control, high-quality materials and externally adjustable settings, the T10 forks offer optimized compression and rebound adjusters with handcrafted construction for durability and performance. Precision components are specifically designed for track and enduro performance and stability.

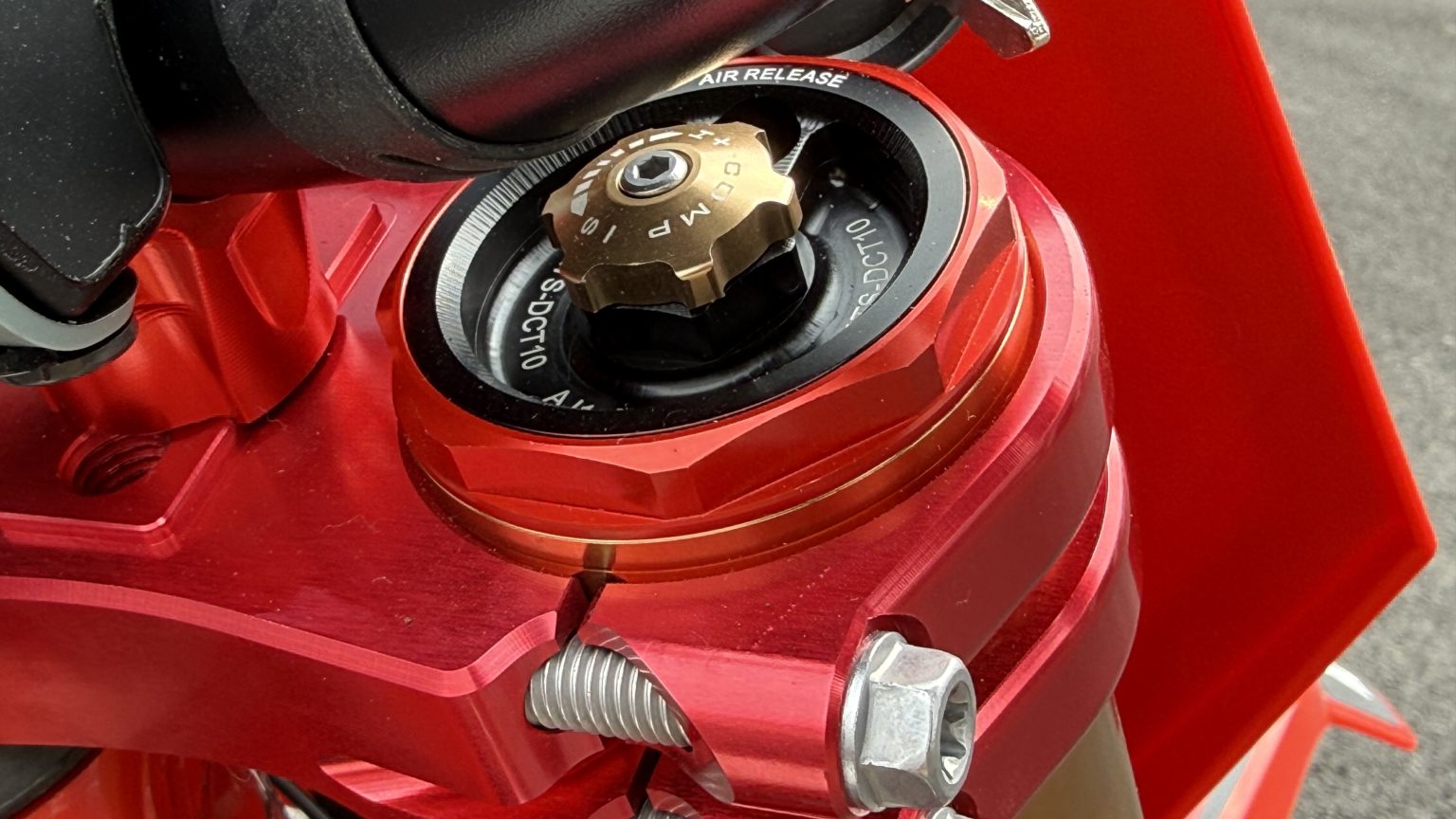

  The closed-cartridge system uses high-tech materials for performance and longevity, as one would expect from AJ1 products. The forks can be tuned by the rider with easy adjustments for compression and rebound, as well as easy air-release valves.

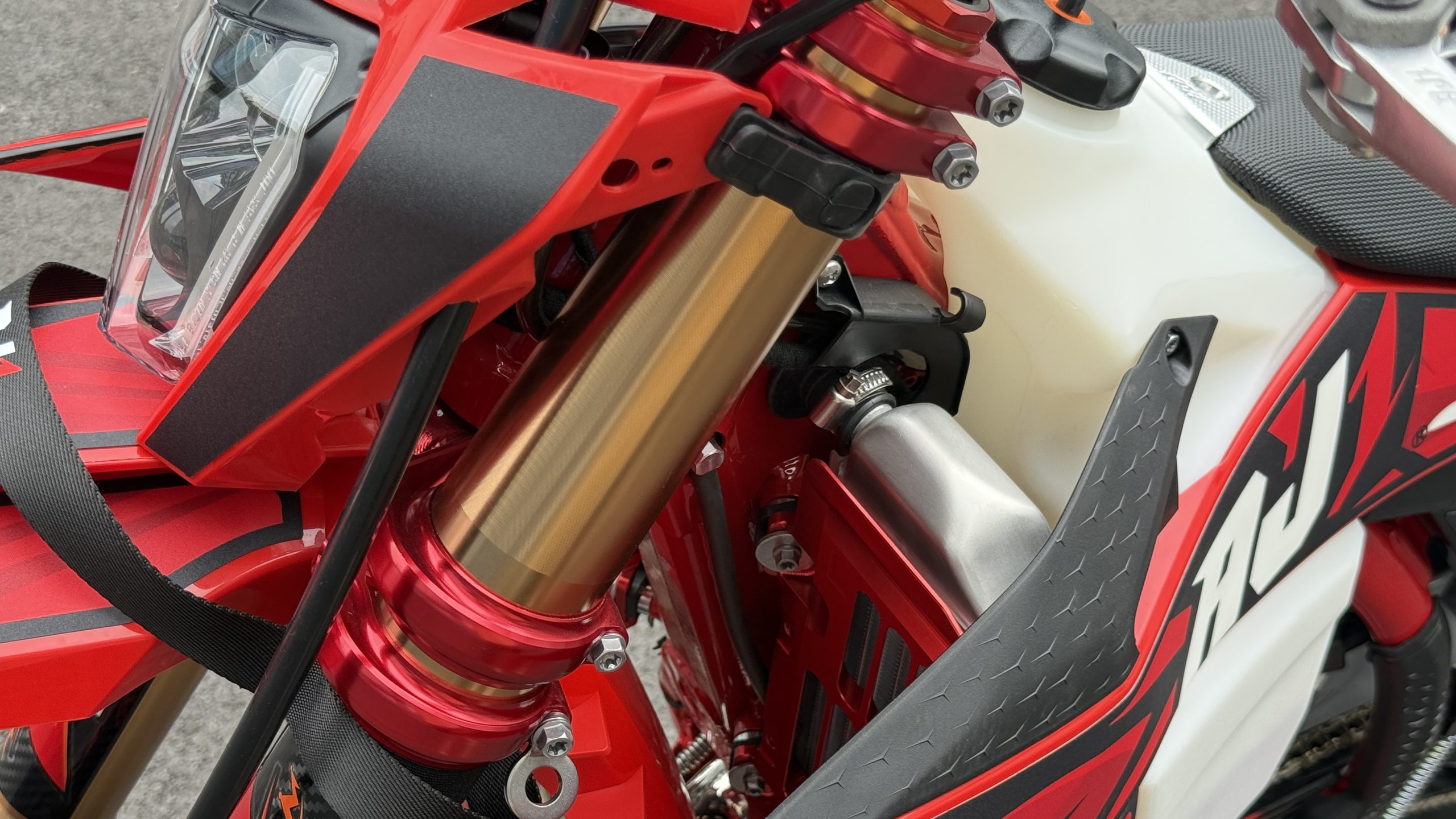

  The DLC (Diamond-Like Carbon) coating on the fork tubes is a high-performance treatment that enhances the durability and response of the AJ1 T10 forks. It is particularly beneficial and crucial for wear resistance and corrosion resistance, enhancing handling and performance.

  The DLC coating is exceptionally hard, with low-friction characteristics that reduce friction for improved fork response, durability and stability.

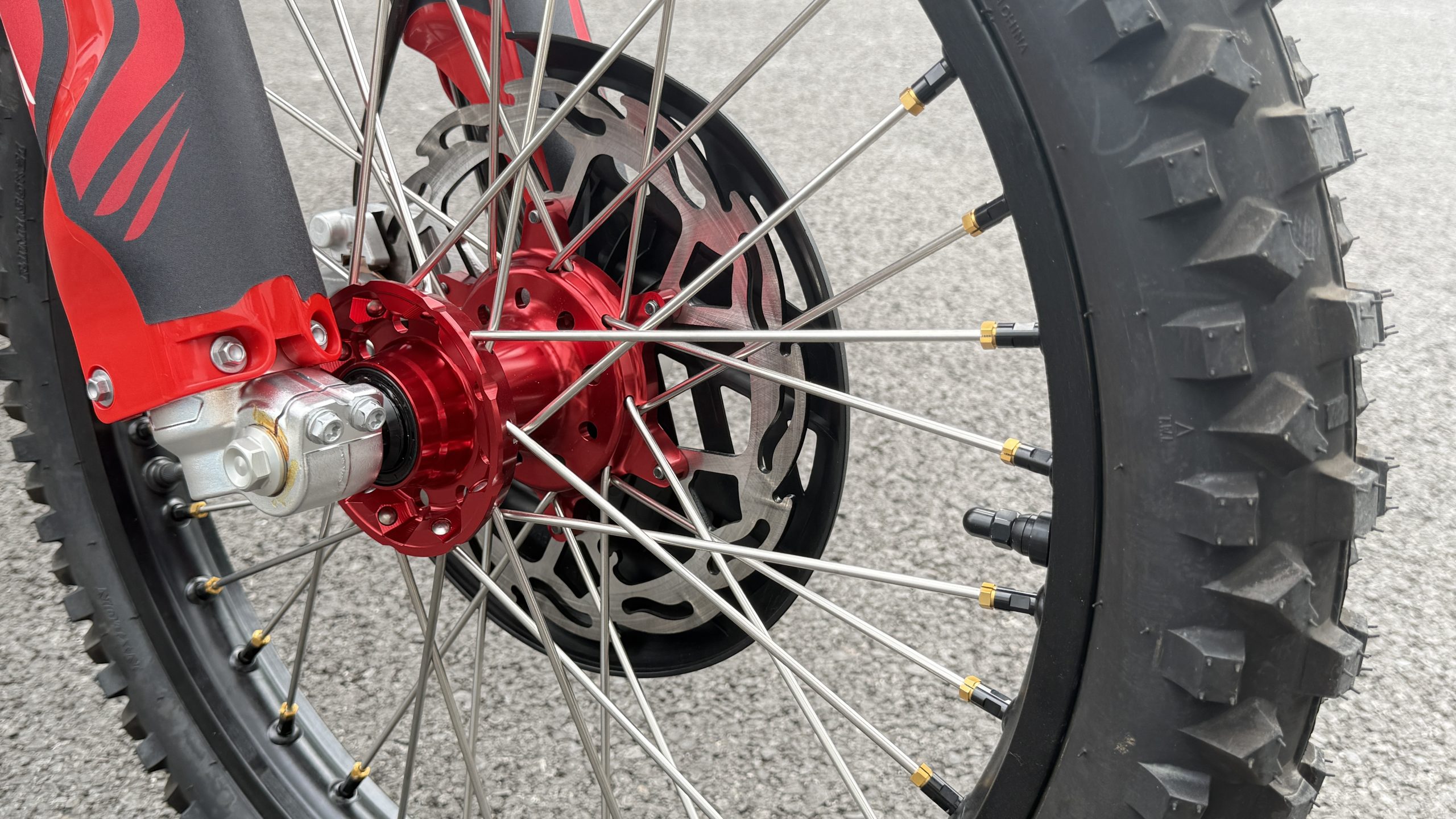

• Rims: aluminum GLM 7050 series, CNC hubs, NSK bearings
• Wheel sizes: 21" front / 18" rear
• Tires: front 80/100-21, rear 120/90-18

Design & Performance

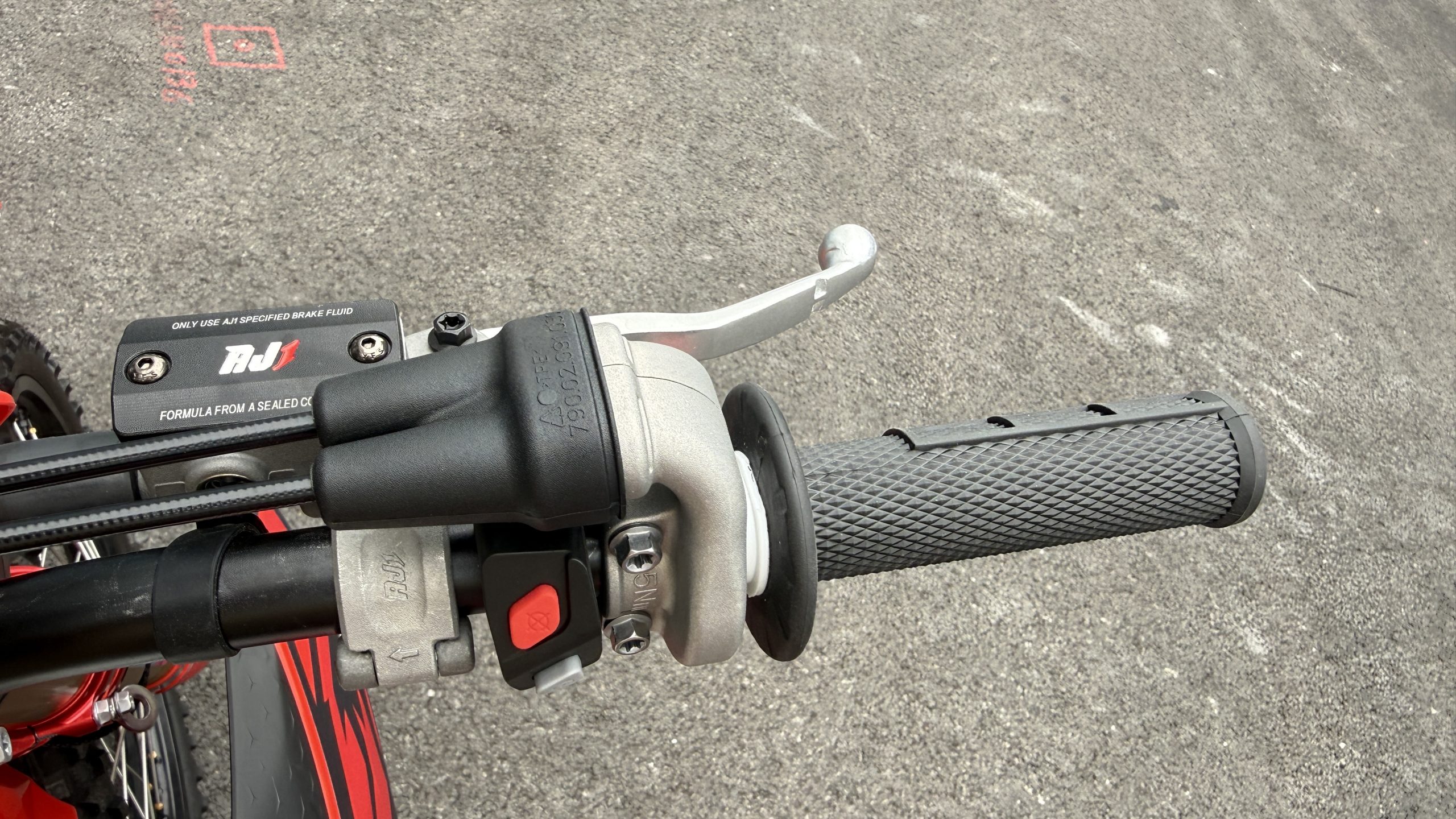

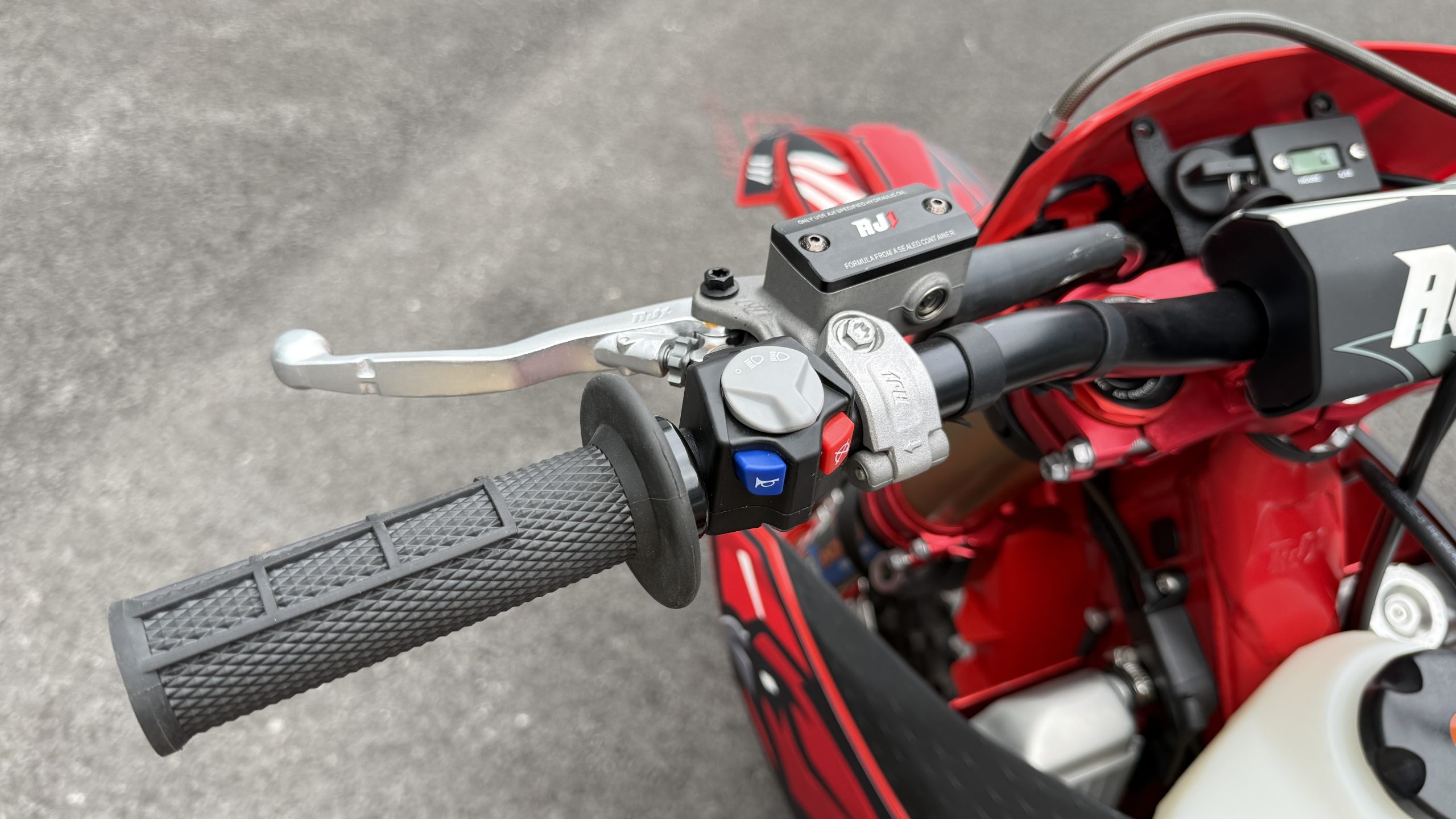

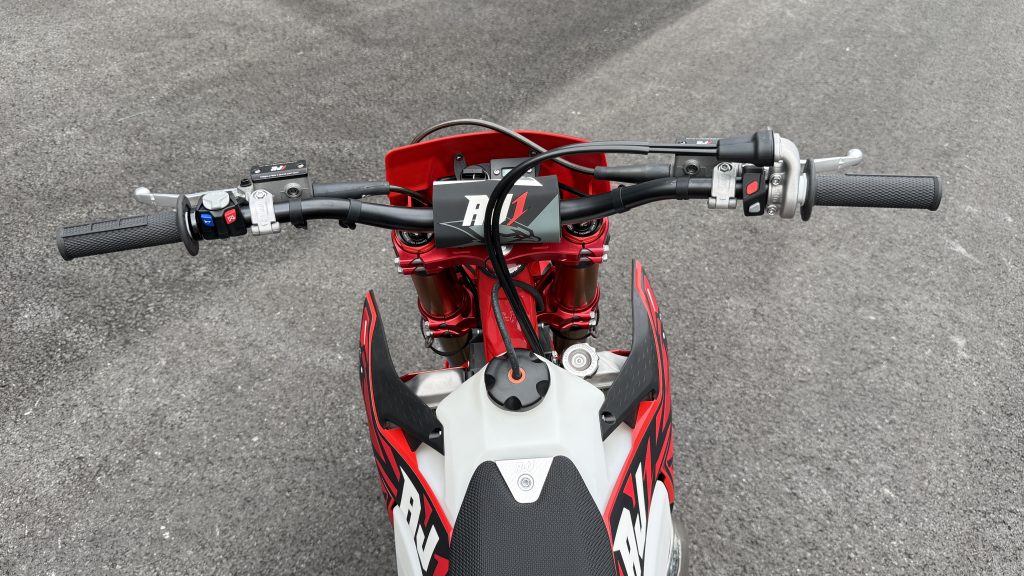

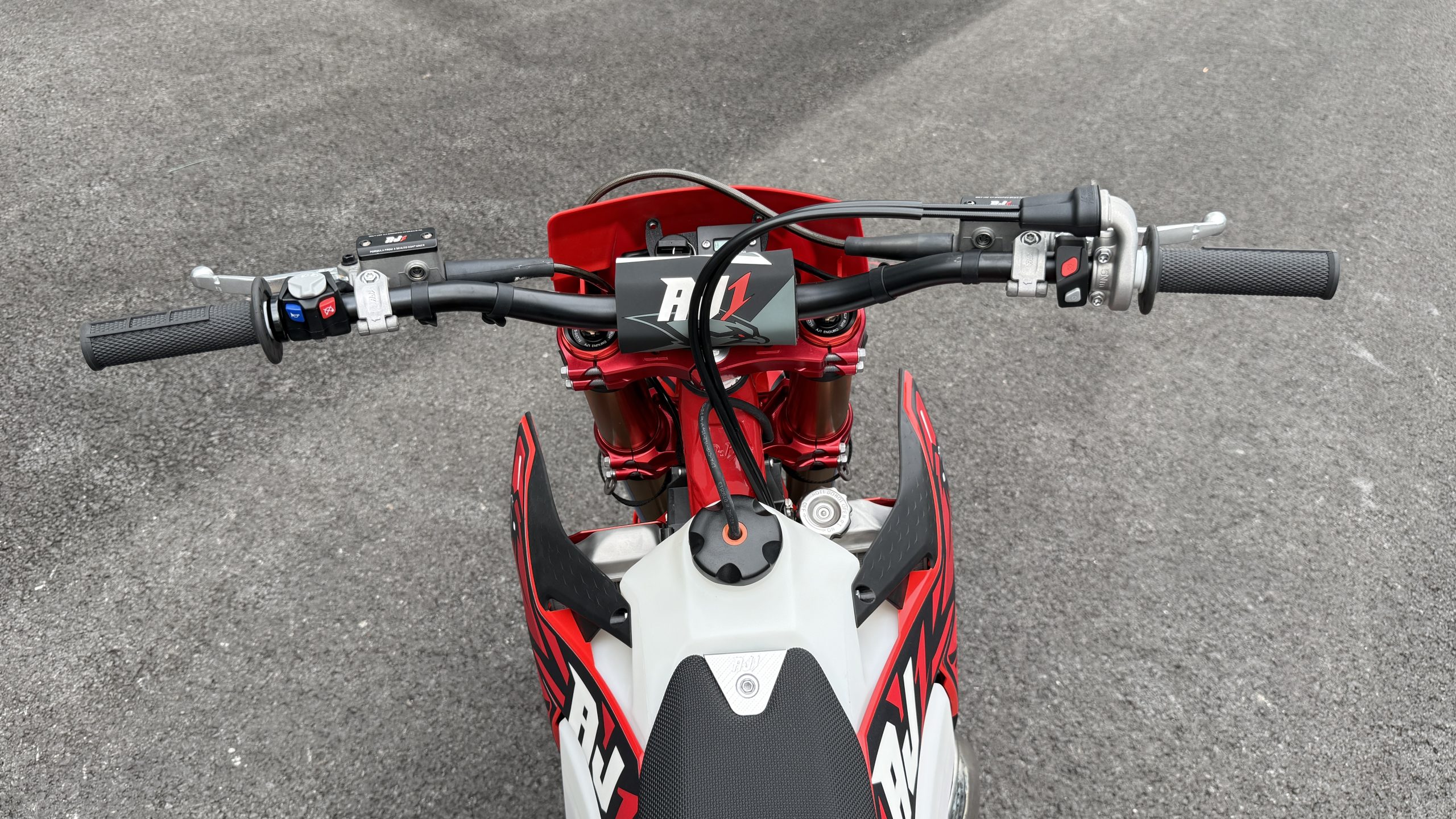

The AJ1 brake master cylinders are designed specifically for off-road and enduro riding. The master cylinders deliver instant response and precise braking control in any condition. Maximum readiness and optimal responsiveness with perfectly adjustable braking performance, even in extreme conditions.

Precision & Adjustability

The design guarantees excellent linearity between the force applied to the levers and the braking response at the wheels. Fully adjustable levers for those who strive for precision.

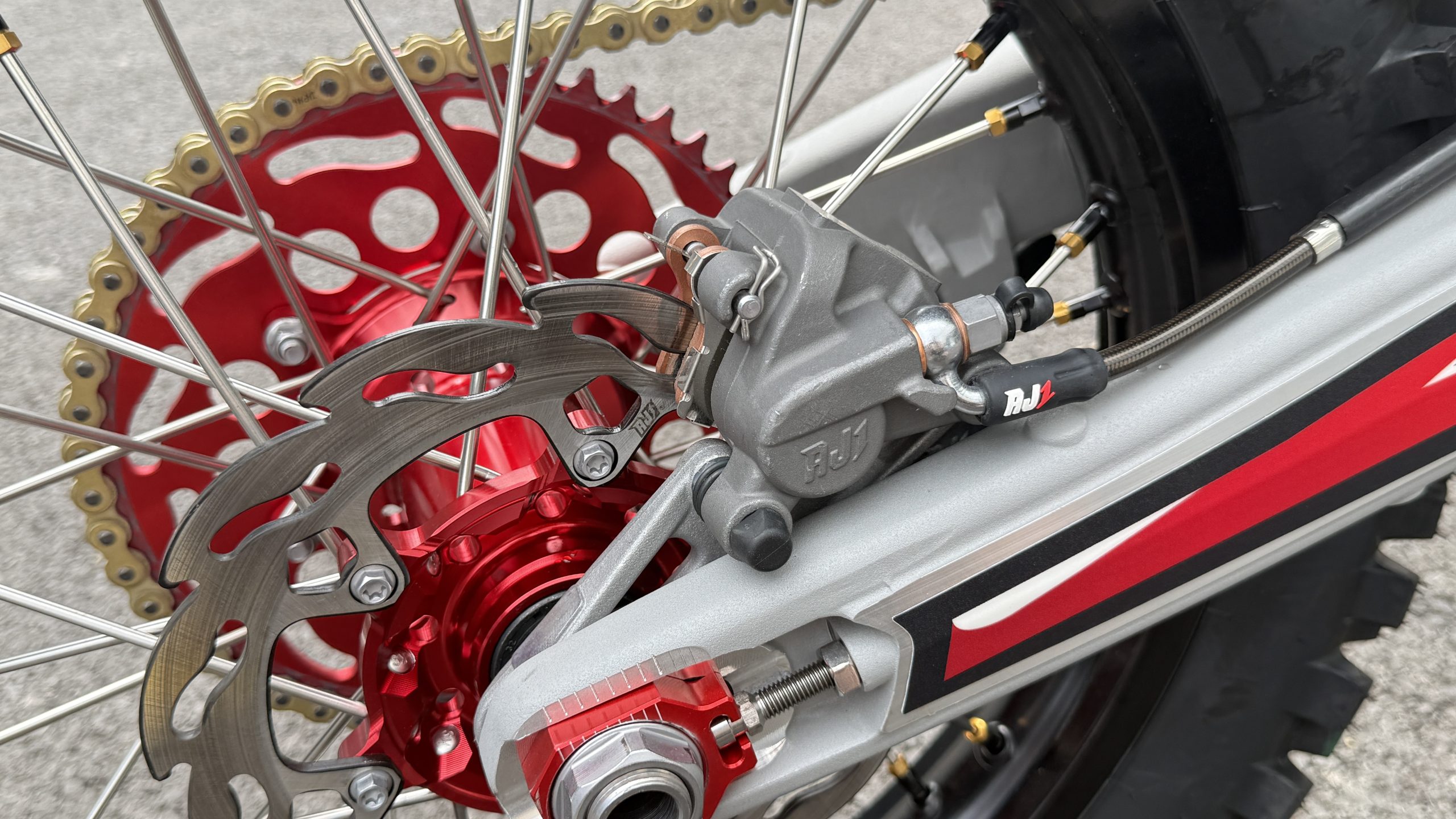

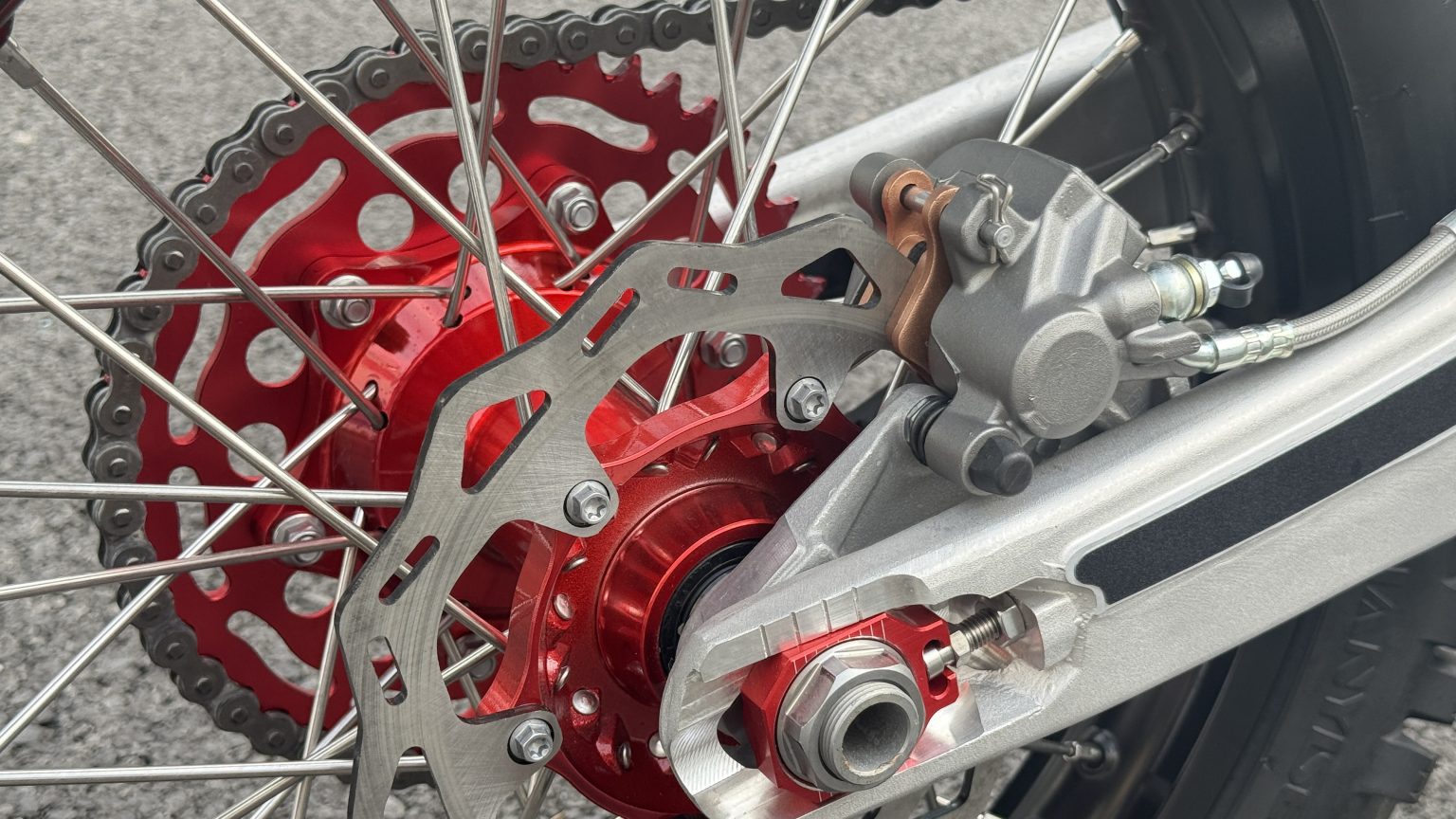

The AJ1 rear brake caliper is designed for off-road and enduro adventures. Because we know the trails and tracks you tackle are anything but predictable, our AJ1 brake calipers are responsive whenever you need them. Reliable braking lets you take on any terrain with ease.

The rear caliper mounts to a very sturdy bracket, also manufactured by AJ1, to ensure the reliability and safety of the system we manufacture. The gravity-cast aluminum body ensures an excellent strength-to-weight ratio. The rear caliper is equipped with a single 27 mm diameter aluminum piston, which improves braking force.

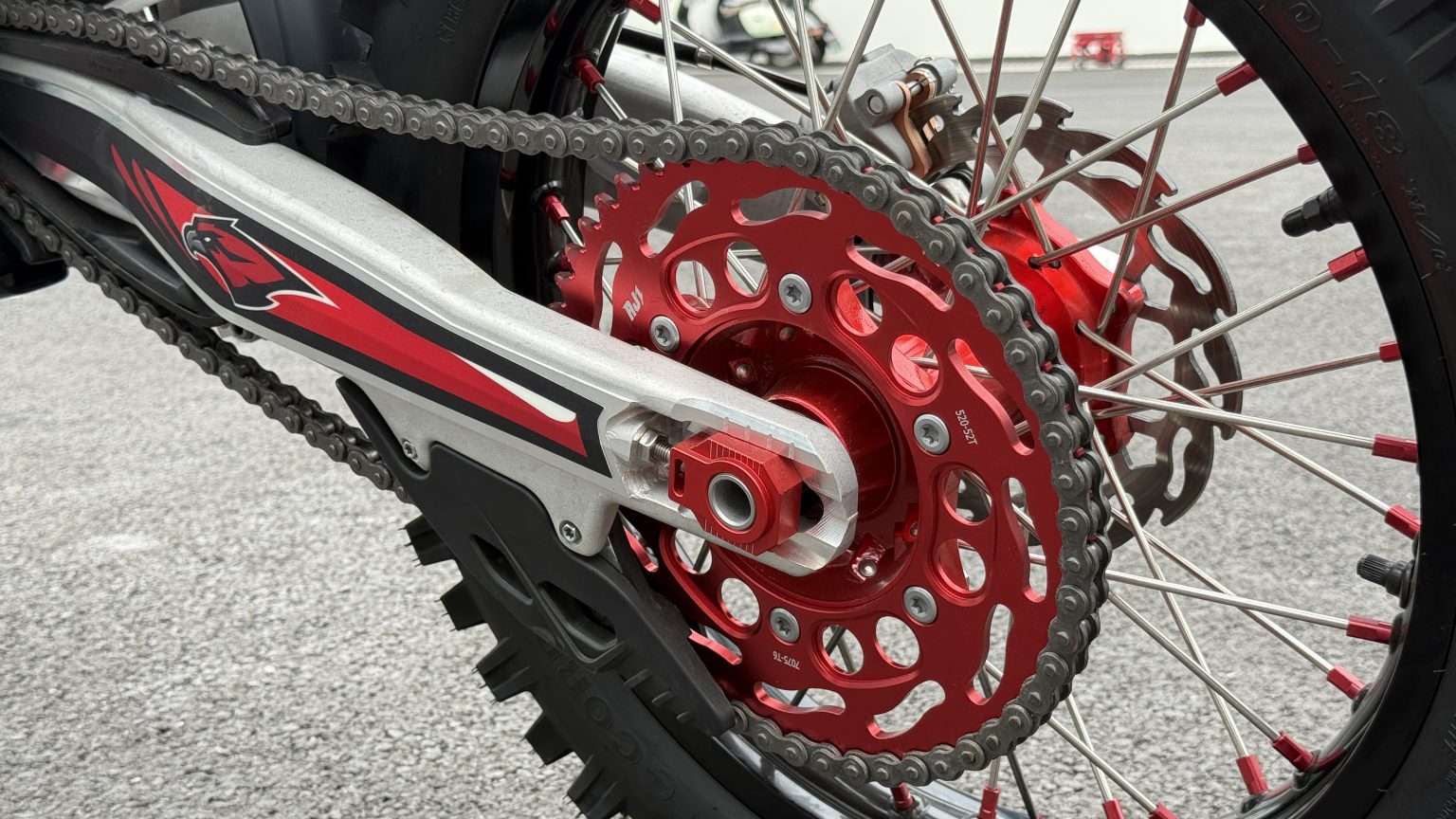

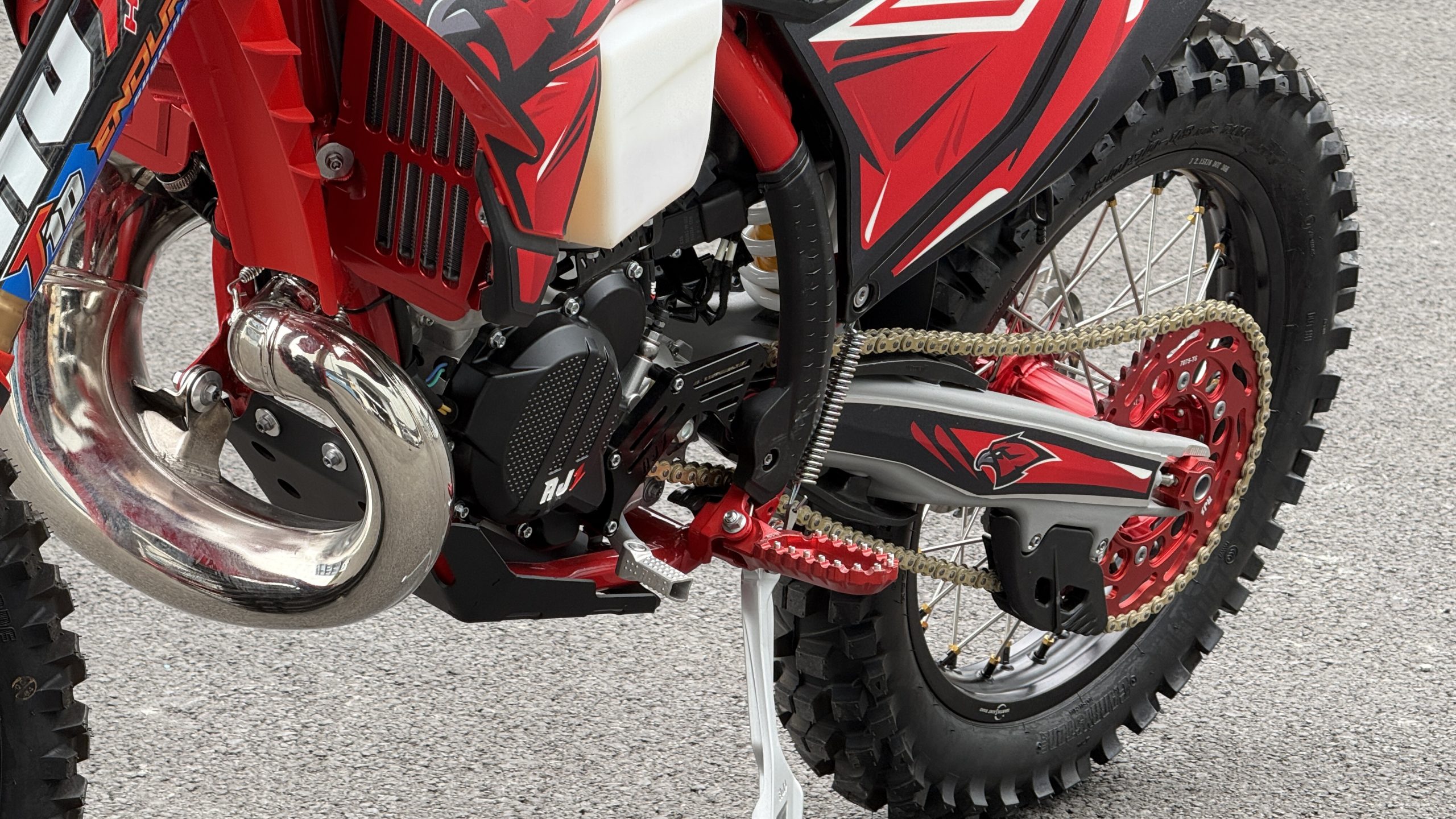

Aluminum 7075-T6 sprocket, 520 chain, 51 teeth.
